Description
The Dualmat® conforms to the most stringent static control and lead-free requirements. The material is so reliable that the electricals have a warranty for the lifetime of the mat.

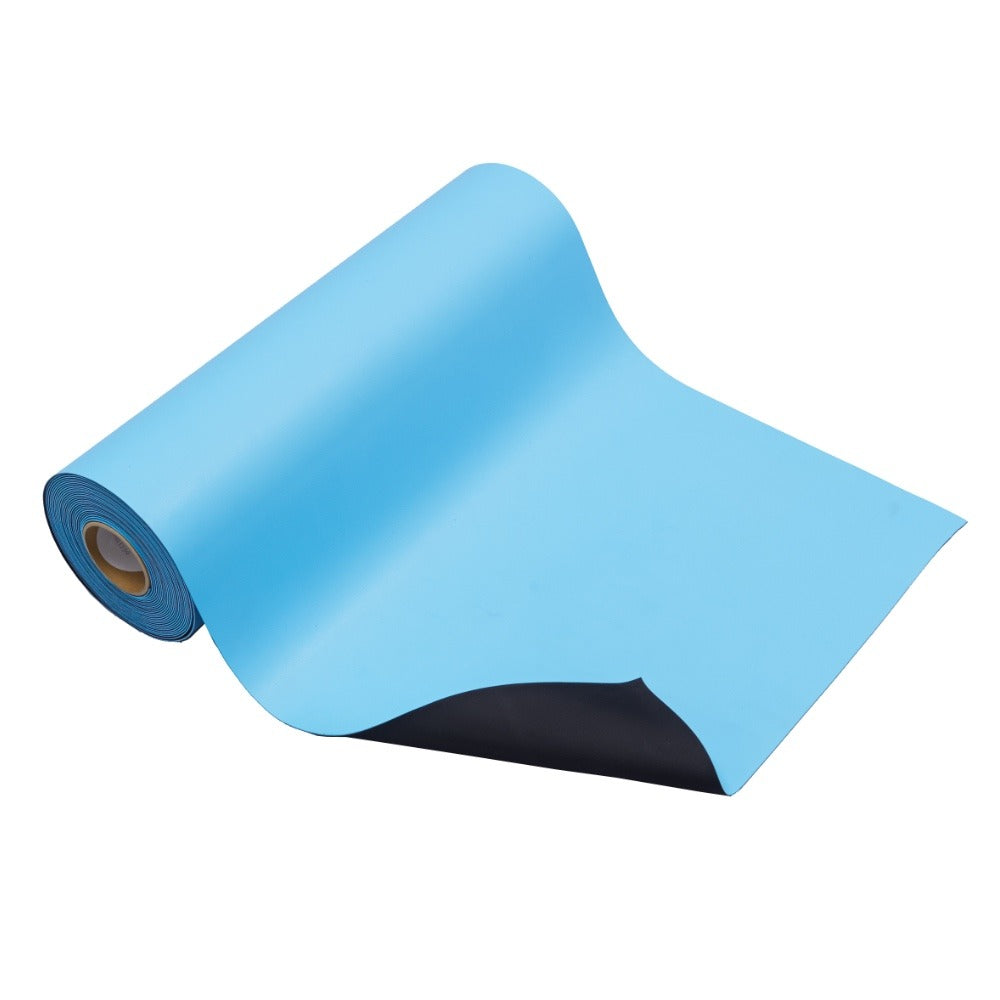

Dualmat is a 2-layer dissipative rubber material with a conductive bottom. The material will not outgas or lose its electrical properties. Embossed surface reduces glare and parts slippage. The durable static control material is resistant against solder, heat, and most common solvents. Fully compliant to REACH, RoHS, and Conflict Minerals
• Topside resistance measures 106 – 108 ohms
• Bottom side resistance measures less than 5x10e5 ohms
• Electricals are warranted for the lifetime of the mat
• Suitable for companies adhering to ANSI/ESD S20.20
• Two layers; conductive bottom, dissipative top
• Static decay of .05 seconds when grounded
• Embossed surface
• Low outgassing; low VOC
• UV additives provide color stability
• Light blue
• 24” x 40’ x .08” thickness
